DIAPHRAGMS
FOR MILLS

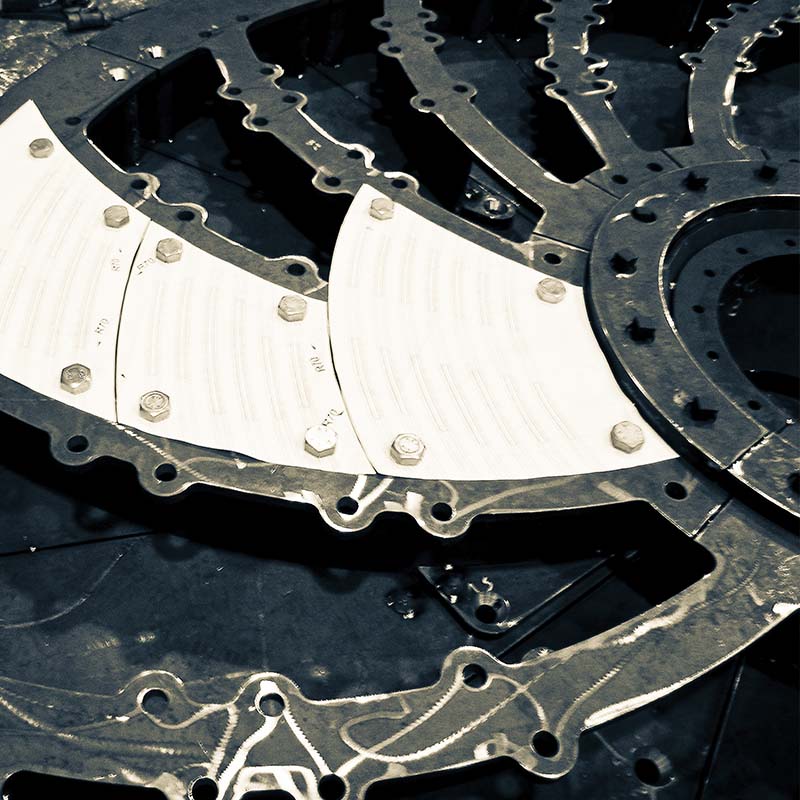

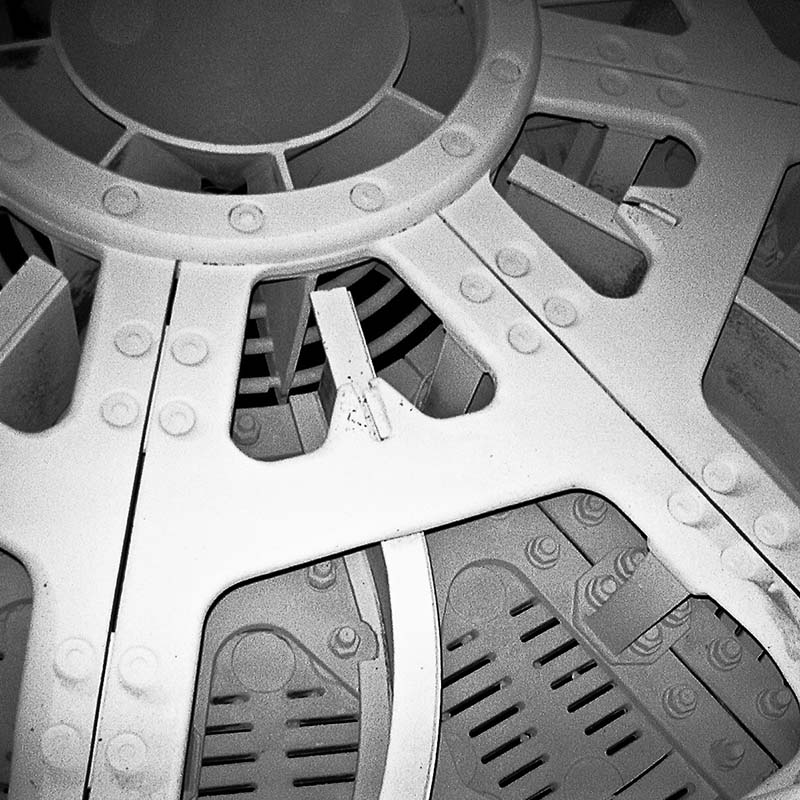

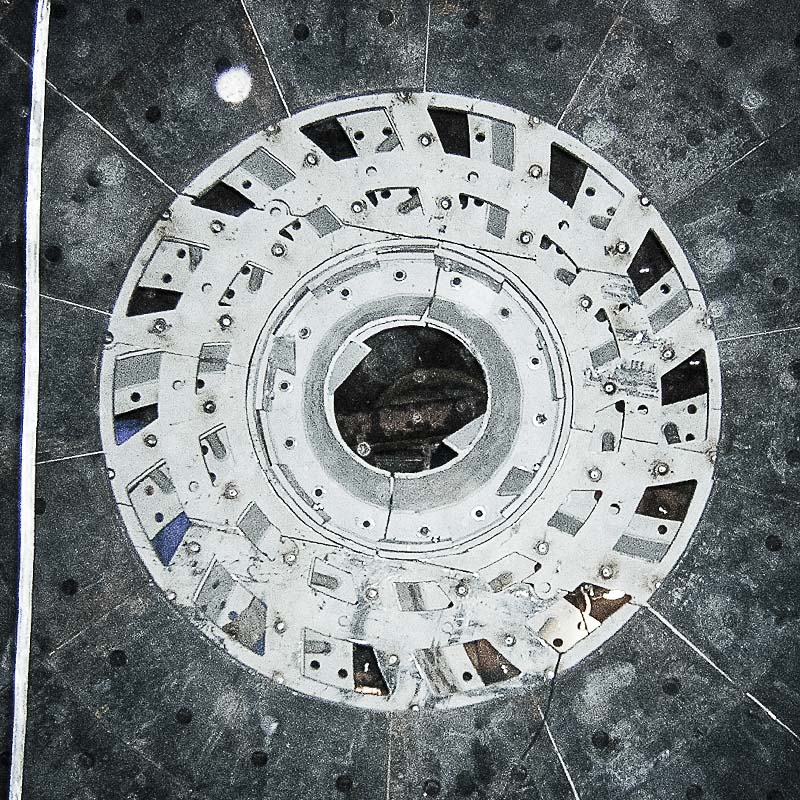

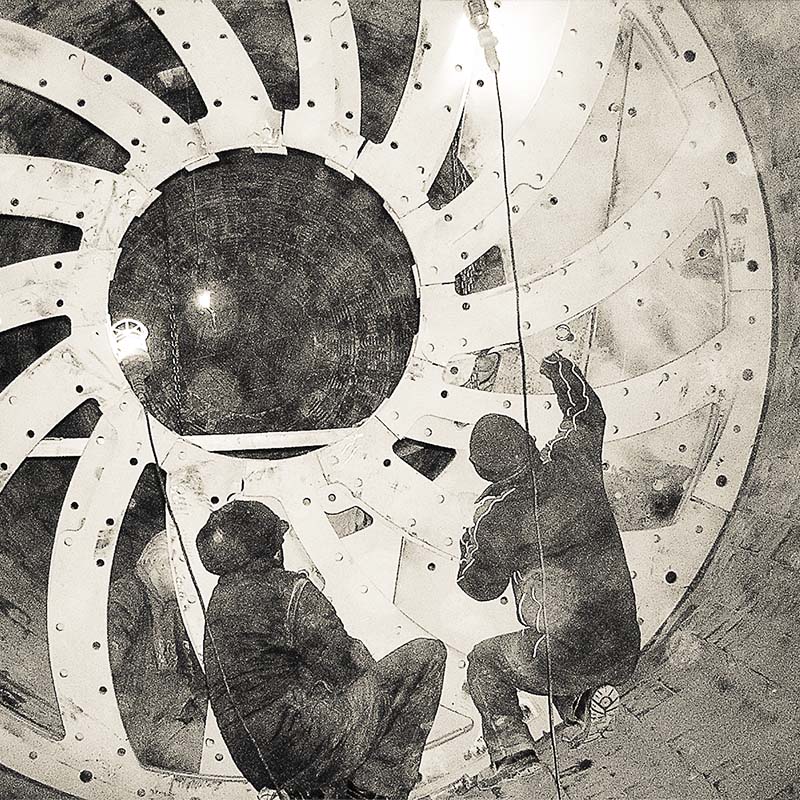

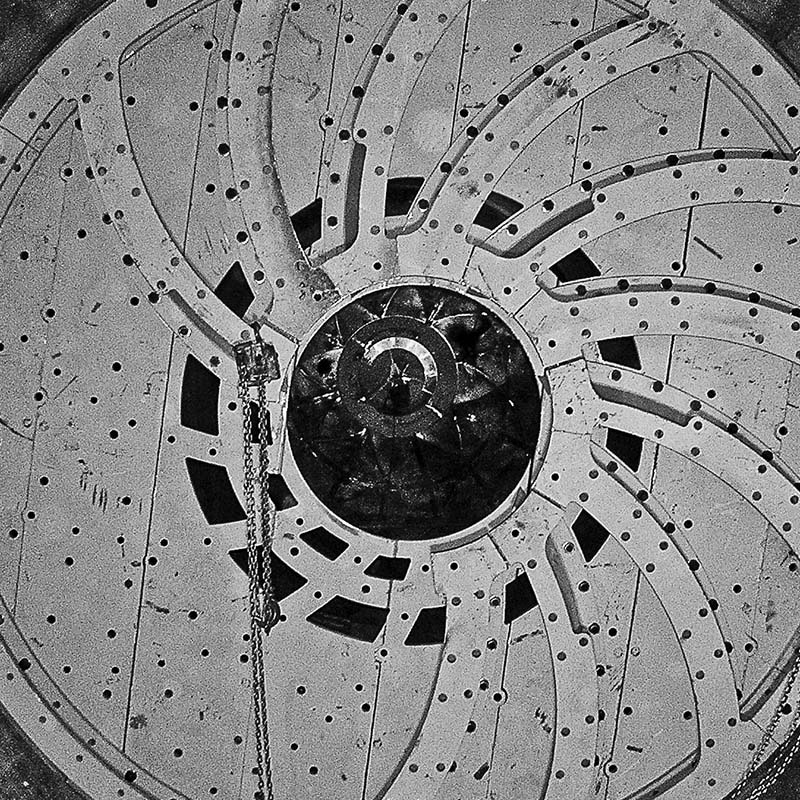

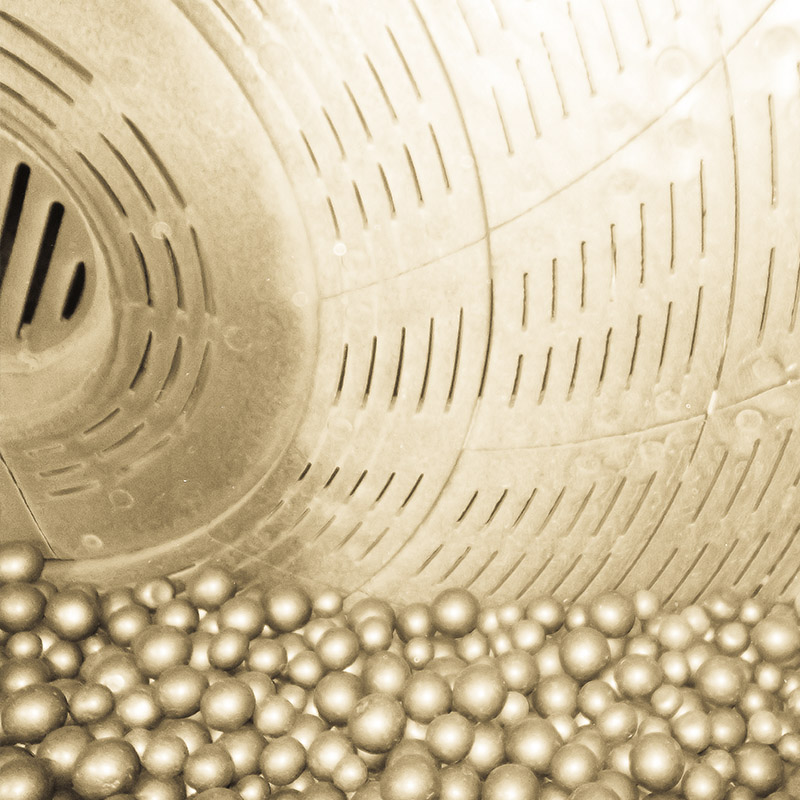

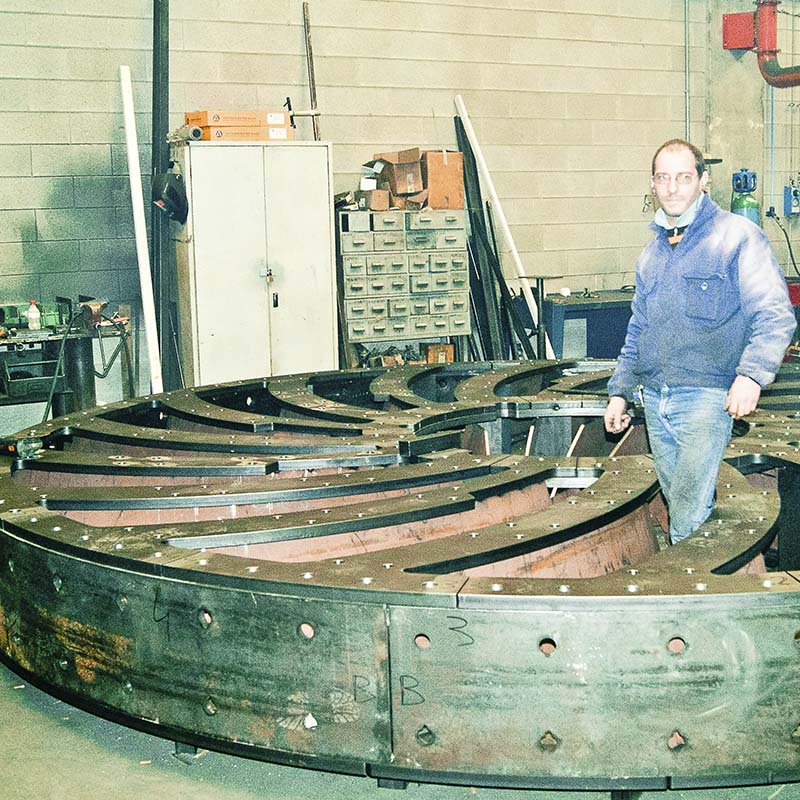

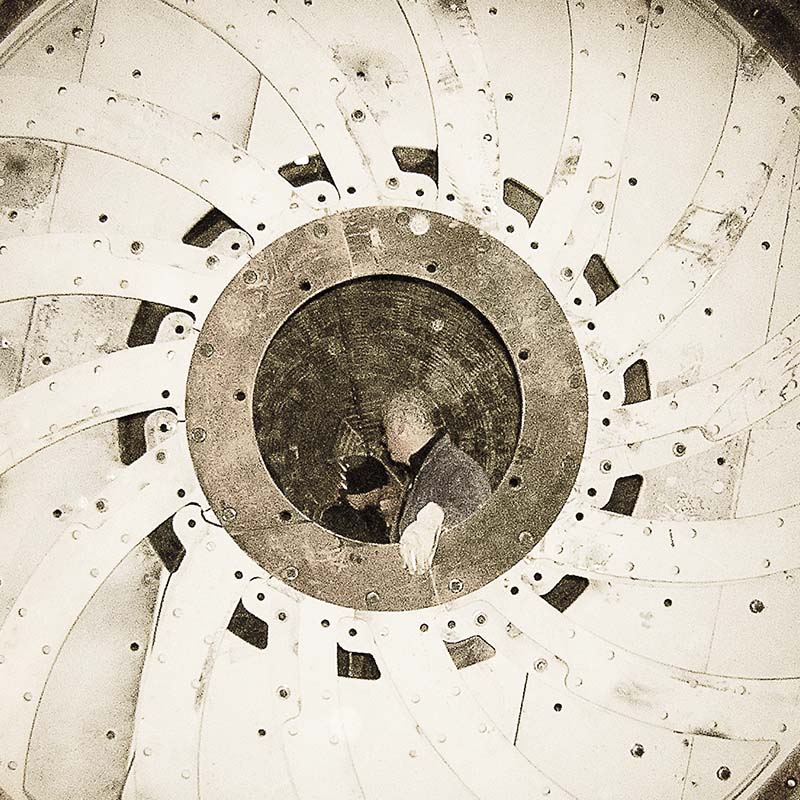

We design, manufacture, and install rolled steel diaphragm frames and diaphragms for all types of ball mills:

• Cement
• Raw meal
• Coal/coke
• Minerals

We select the most suitable construction type for the service, combined with the best wear-resistant materials depending on the required application, defining for each specific application:

• The overall dimensions
• The number of vanes
• The free air passage areas

Furthermore, we calculate mechanical deformations and thermal expansions according to the unique features of each individual plant and the customer’s requirements.

Attention to technical details and care in manufacturing, combined with our acquired experience, easily translate into decades of service, without breakdowns or maintenance interventions.
